EleNor

The innovative composition and structure of EleNor offers an incredible number of possibilities in terms of design and ability to fit into the surroundings.

ISO certified

Quality assurance

Liftup is ISO-certified according to the ISO 9001 standard for quality assurance. Certification is granted through agreements on continuous and periodic assessment by an independent third-party body that will audit the organisation to ensure that all quality processes are followed. That's your guarantee that we consistently deliver quality products and services able to fulfil your needs and expectation, along with any legal requirement.

All Liftup's lifts fulfil the requirements of the EU Machine Directive. That's your guarantee of a safe product that will last for years.

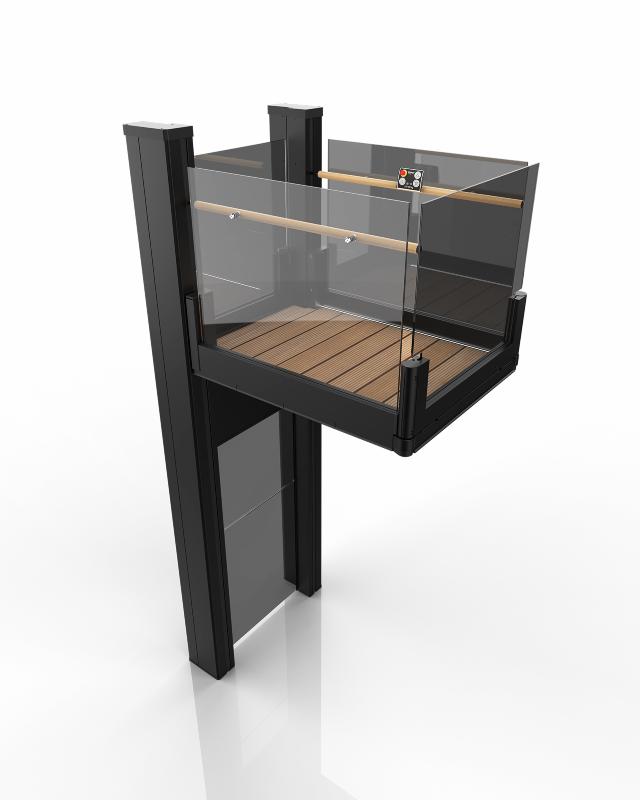

EleNor Open

1100 x 1400 mm platform



To achieve perfect design chorence, the lift's handrails can be ordered in any RAL color on request (standard: brushed stainless steel).



Install your own matching floor on the platform to make EleNor integrate seamlessly into the existing environment (standard: aluminum door panel, non-slip linolium, vinyl plank/Texas Oak).



Add your own personal touch on the lift's appearance by picking your preferred safety glass (smoked, frosted, coloured). Standard: Transparent safety glass.


Inner platform size
1100 x 1400 / 1100 x 1050 mm
Outer platform size
1312 x 1869 / 1312 x 1519 mm
Lifting capacity
400 kg
Lifting height
1150-3000 mm
Stops
2
Speed
0,15 m/s
Noise
< 60 dB
Duty cycle
2 min. / 4 min.
Power supply
230V, 50 Hz (13 A), max. 2900 W, standby <150 W
Drive type
Double belt drive
Approval
EN81-41:2011, ASME A18.1:2020
U.S Design Patent
