EasyLift

The EasyLift is available in 3 standard platform widths; 800, 900 and 1100 mm, optional safety doors or safety barrier, pit based installation, etc.

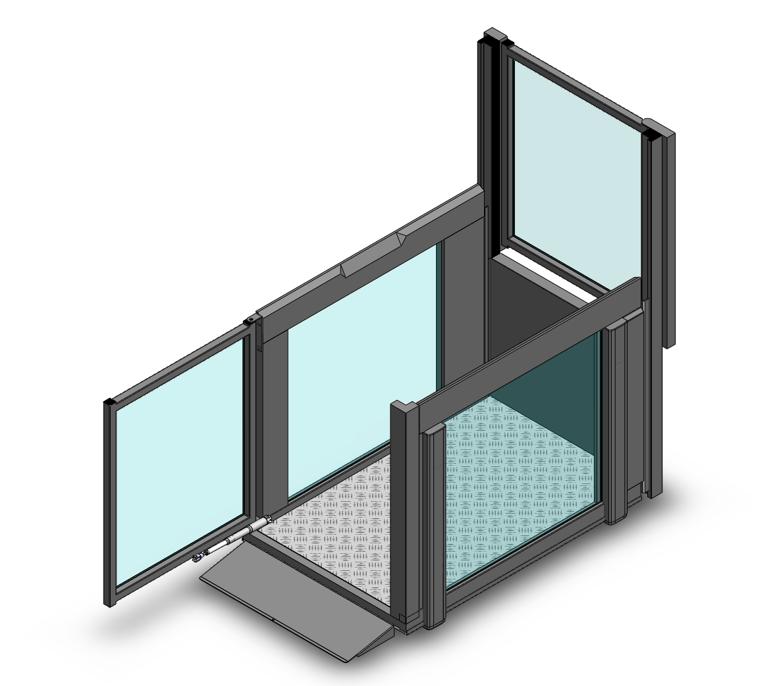

EasyLift 800

800 x 1400 mm platform



EasyLift 800 is the narrowest EasyLift with a platform size of 800 x 1400 mm. With its compact design, it is especially suitable for private homes.



With many options for flooring, colors, and other details, your EasyLift can be easily customized to fit perfectly into your home.



Standard Features

Door lock
Side entrance



Optional

Active ramp
Polycarbonate sides/door
Glass sides/door
Bellows





Technical specifications




Version
V3 PLUS
Lifting capacity
400 kg
Lifting height
70-1350 mm
Lifting speed
40 mm / s
Weight
Approx 200 kg
Length (incl. ramp)
1808 mm
Inside width
800 mm
Overall width
945 mm
Min. Inst. Width
1060 mm
Pit depth
70 mm
Pit length
1520 mm
Battery backup
30 cycles at 25C
Noise
< 70 dB
Duty cycle
2 min. / 5 min

EasyLift 900

900 x 1400 mm platform



EasyLift with a 900 x 1400 mm platform is primarily designed for use in public places where it is necessary to ensure that the platform is wide enough for any wheelchair.



If EasyLift 900 is installed in a pit, it can be equipped with a protective bellows that prevents larger objects, such as a football, branches, trash, etc., from getting underneath the lift. The bellows also prevent children and animals from moving under the lift. The bellows are attached with Velcro, making them easy to install and remove.



Standard Features

Door lock
Side entrance



Optional

Active ramp
Polycarbonate sides/door
Glass sides/door
Bellows





Technical specifications


Version
V3 PLUS
Lifting capacity
400 kg
Lifting height
70-1350 mm
Lifting speed
40 mm / s
Weight
Approx 200 kg
Length (incl. ramp)
1808 mm
Inside width
900 mm
Overall width
1045 mm
Min. Inst. Width
1160 mm
Pit depth
70 mm
Pit depth with bellows
210 mm
Pit length
1520 mm
Battery backup
30 cycles at 25C
Noise
< 70 dB
Duty cycle
2 min. / 5 min

EasyLift 900 R

900 x 1400 mm platform



EasyLift 900 Reinforced is a more sturdy version of the original EasyLift 900, featuring a stronger base frame. This results in reduced platform deformation under heavy weight loads.



Like the EasyLift 900, the R model with a 900 x 1400 mm platform is ideal for public spaces where it is necessary to ensure the platform is wide enough for any wheelchair.



If EasyLift 900 R is installed in a pit, it can be equipped with a protective bellows that prevents larger objects, such as a football, branches, trash, etc., from getting underneath the lift. The bellows also prevent children and animals from moving under the lift. The bellows are attached with Velcro, making them easy to install and remove.



Standard Features

Door lock
Side entrance



Optional

Active ramp
Polycarbonate sides/door
Glass sides/door
Bellows





Technical specifications


Version
V3 PLUS
Lifting capacity
400 kg
Lifting height
70-1350 mm
Lifting speed
40 mm / s
Weight
Approx 200 kg
Length (incl. ramp)
1808 mm
Inside width
900 mm
Overall width
1045 mm
Min. Inst. Width
1160 mm
Pit depth
70 mm
Pit depth with bellows
210 mm
Pit length
1520 mm
Battery backup
30 cycles at 25C
Noise
< 70 dB
Duty cycle
2 min. / 5 min

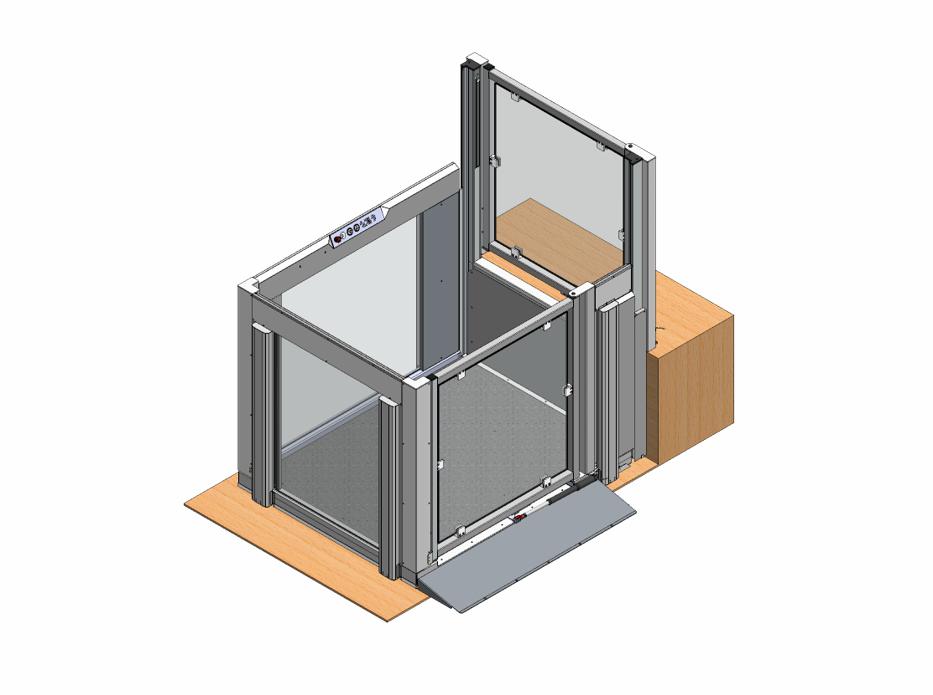

EasyLift 1100

1100 x 1400 mm platform



EasyLift 1100 is the most spacious platform – the widest – with a platform size of 1400 x 1100 mm. It is the widest platform in Liftup's range. Unlike the narrower models, this version offers the option of safety glass (tempered laminated glass) in the side panels and doors, as well as a door lock at both the upper and lower levels.



If EasyLift 1100 is installed in a pit, it can be equipped with a protective bellows that prevents larger objects, such as a football, branches, trash, etc., from getting underneath the lift. The bellows also prevent children and animals from moving under the lift. The bellows are attached with Velcro, making them easy to install and remove.



Standard Features

Door lock
Side entrance



Optional

Active ramp
Polycarbonate sides/door
Glass sides/door
Bellows





Technical specifications


Version
V3 PLUS
Lifting capacity
400 kg
Lifting height
70-1350 mm
Lifting speed
40 mm / s
Weight
Approx 250 kg
Length (incl. ramp)
1808 mm
Inside width
1100 mm
Overall width
1260 mm
Min. Inst. Width
1360 mm
Pit depth
70 mm
Pit depth with bellows
210 mm
Pit length
1535 mm
Battery backup
30 cycles at 25C
Noise
< 70 dB
Duty cycle
2 min. / 5 min

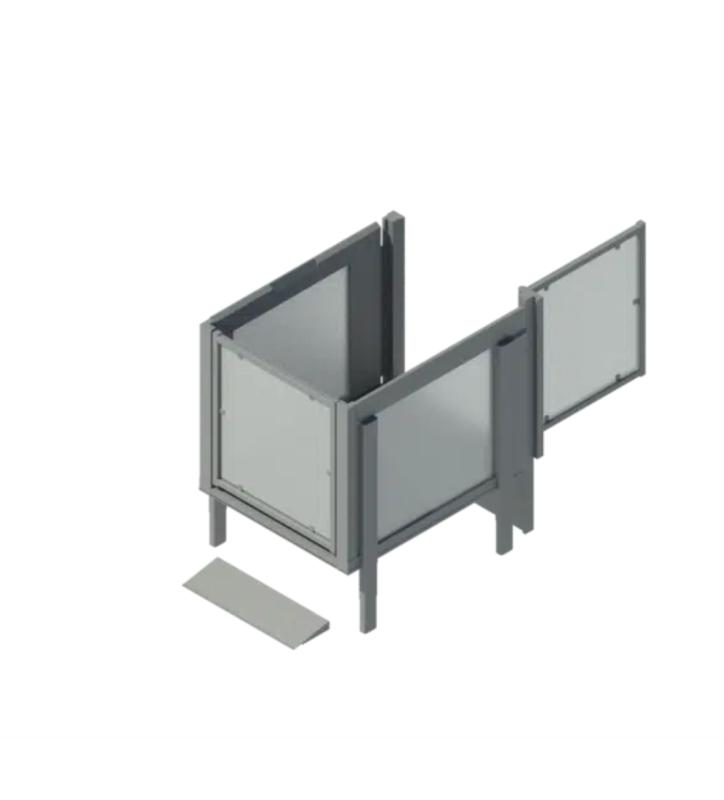

EasyLift 1100 SE

1100 x 1400 mm platform



EasyLift 1100 SE is a version of the 1100 model where the lift door is mounted on the side of the platform instead of at the end of the platform.



This version is the most spacious platform – the widest – with a platform size of 1400 x 1100 mm. It is the widest platform in Liftup's range. Unlike the narrower models, this version offers the option of safety glass (tempered laminated glass) in the side panels and doors, as well as a door lock at both the upper and lower levels.



If EasyLift 1100 is installed in a pit, it can be equipped with a protective bellows that prevents larger objects, such as a football, branches, trash, etc., from getting underneath the lift. The bellows also prevent children and animals from moving under the lift. The bellows are attached with Velcro, making them easy to install and remove.



Standard Features

Door lock
Side entrance



Optional

Active ramp
Polycarbonate sides/door
Glass sides/door
Bellows





Technical specifications


Version
V3 PLUS
Lifting capacity
400 kg
Lifting height
70-1350 mm
Lifting speed
40 mm / s
Weight
Approx 250 kg
Length (incl. ramp)
1808 mm
Inside width
1100 mm
Overall width
1260 mm
Min. Inst. Width
1320 mm
Pit depth
70 mm
Pit depth with bellows
210 mm
Pit length
1580 mm
Battery backup
30 cycles at 25C
Noise
< 70 dB
Duty cycle
2 min. / 5 min
